Drawing identification is simple and efficient, however the drawings are not always ideal to perform identifying. What can we do when the identification result is bad? Here we present you 3 tricks to cope with 80% of the drawing issues.

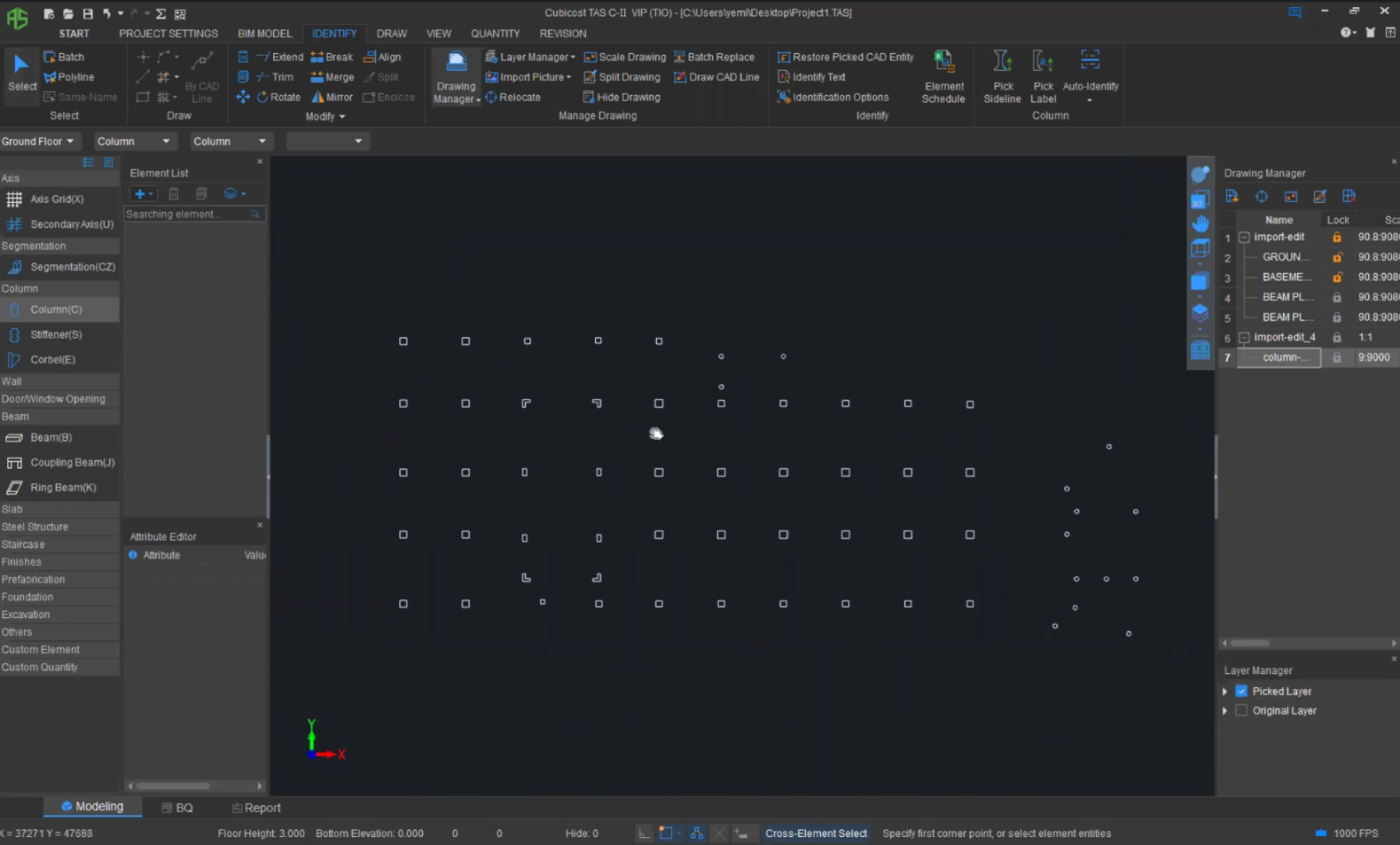

Drawings imported but with useless and disturbing hatches

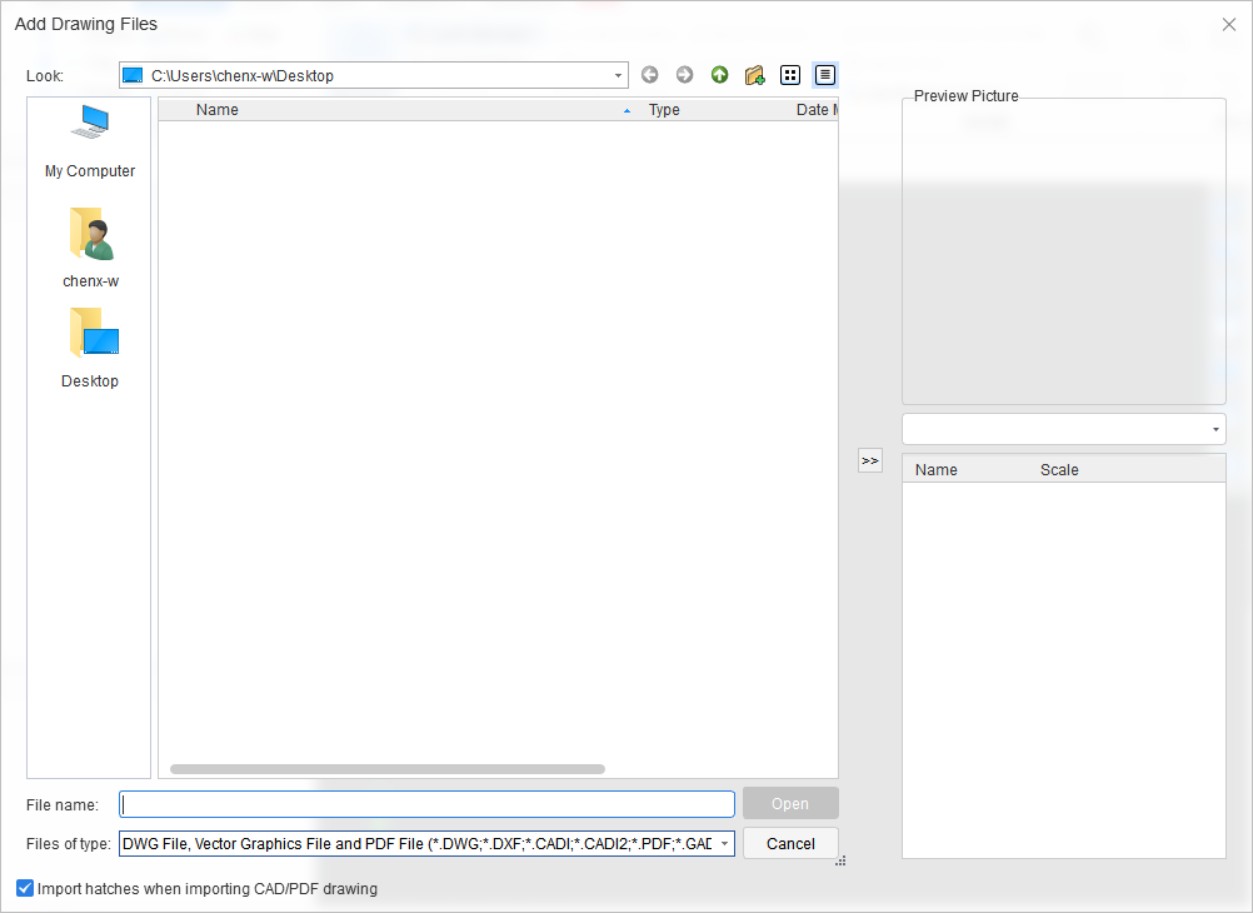

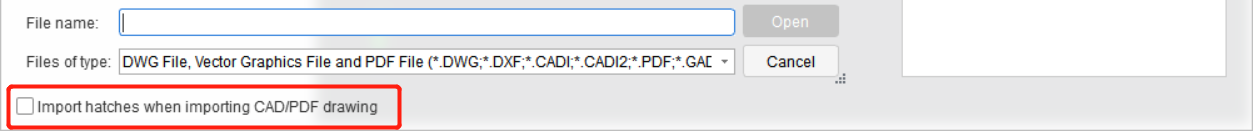

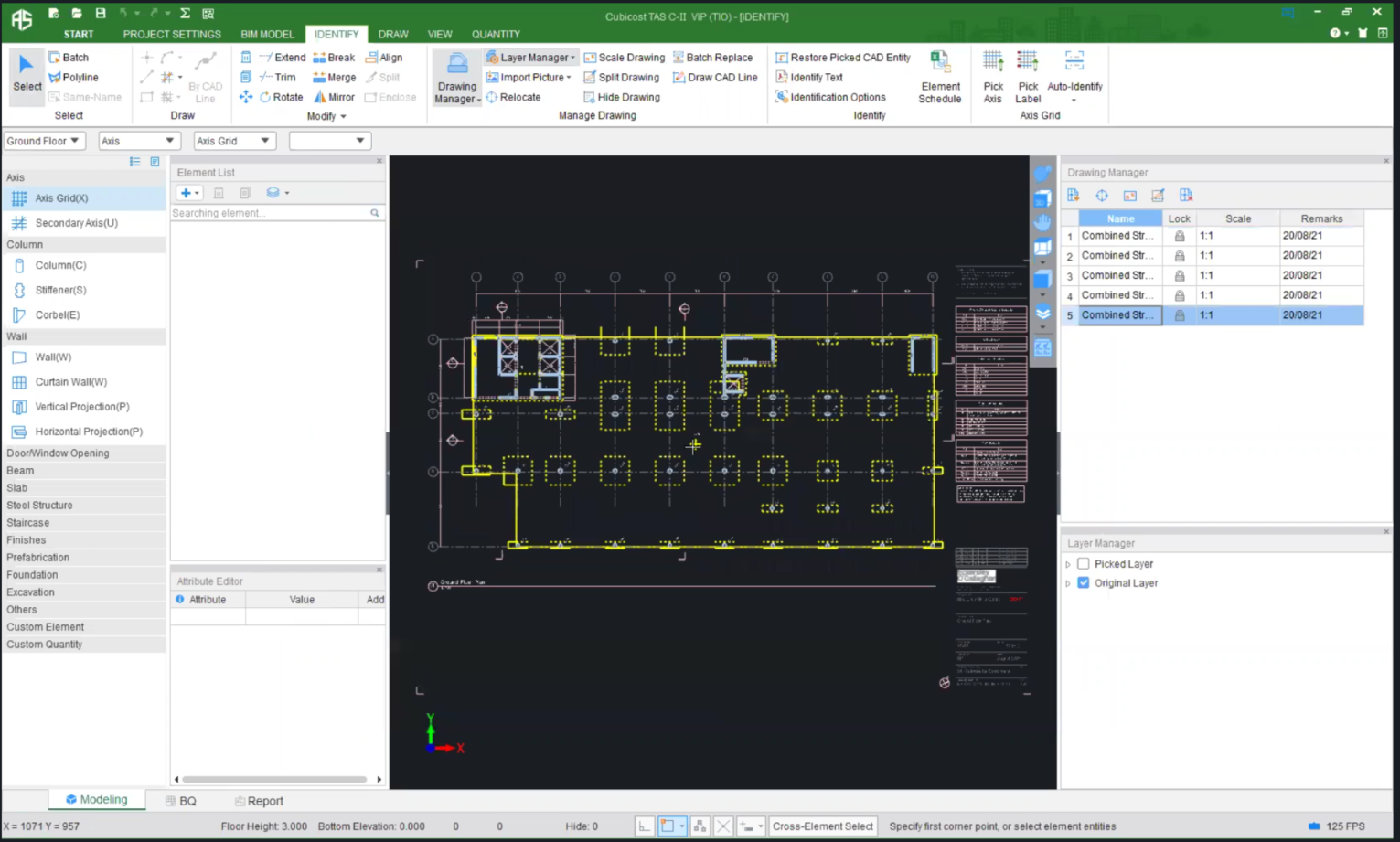

Tip#1：When importing drawings, un-tick Import hatches when importing CAD/PDF drawing

Failed to separate column and wall when they are in the same layer and same color

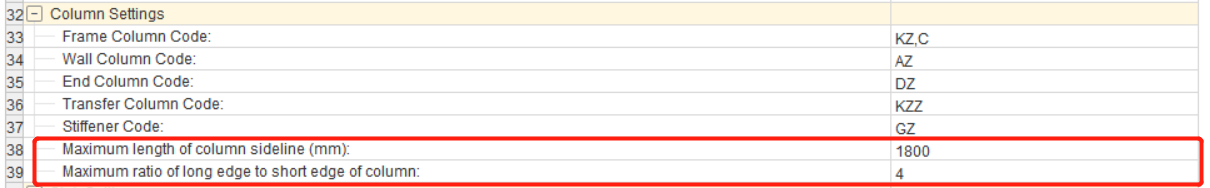

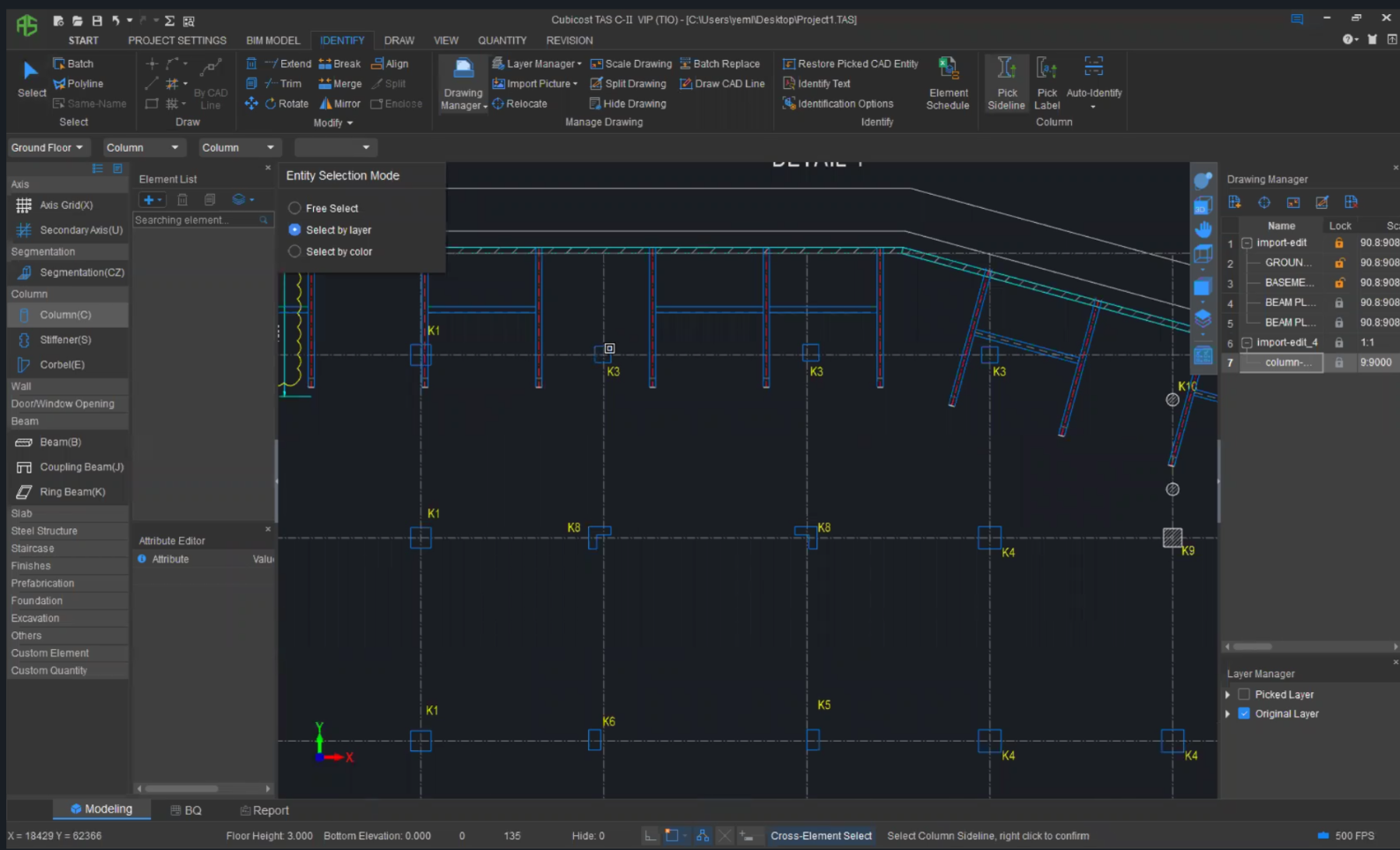

Tip#2：Choose “Select by color”, and set the suitable condition for column in Identification Options (This setting is only available for Select by color).

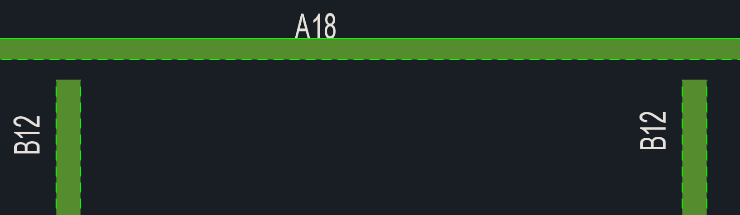

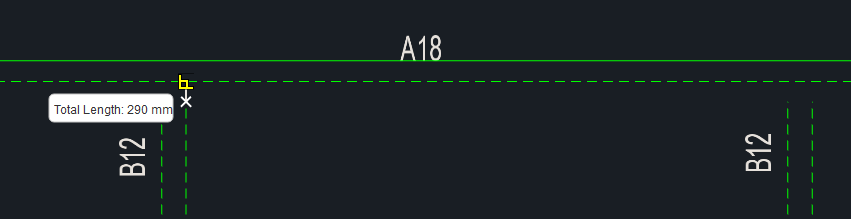

Beams didn't extend to each other after being identified

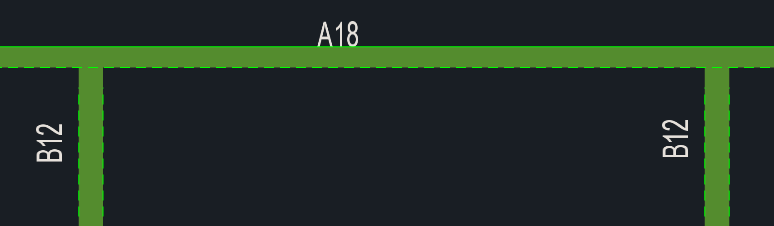

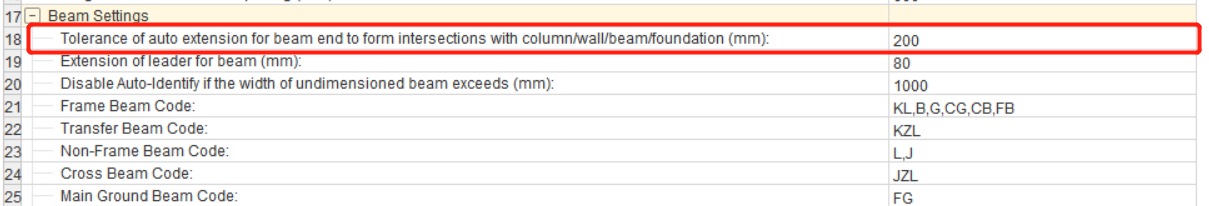

Tip#3: Adjust the tolerance of auto extension for beam end and identify again

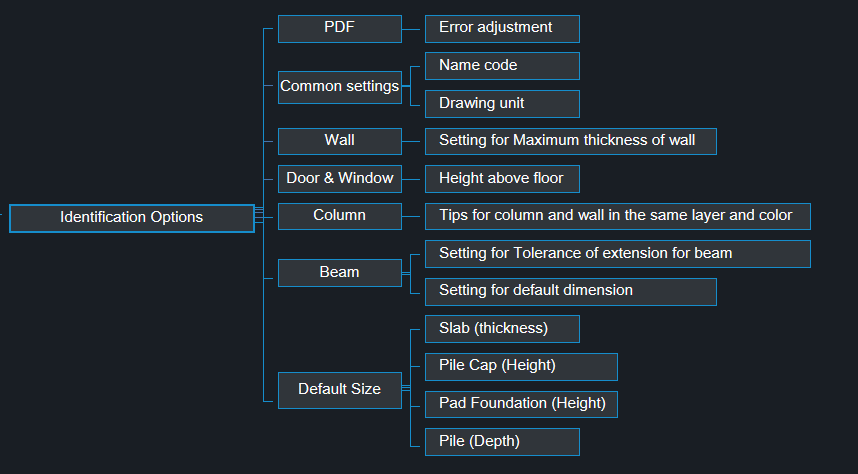

That would be the tips which I find quite helpful and want to share with you, and you probably notice that identification option could be very useful when dealing with drawing issues. Therefore here is the summary for our identification option, and we could have a series of articles explaining the function, so stay tuned!
